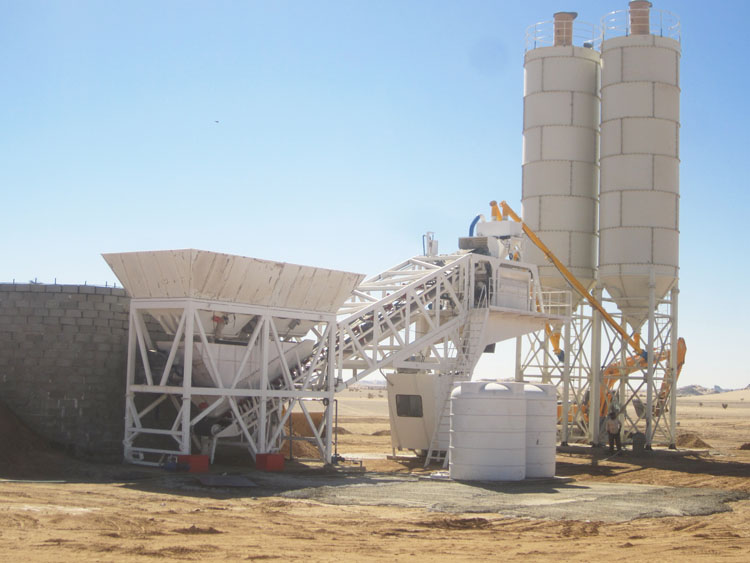

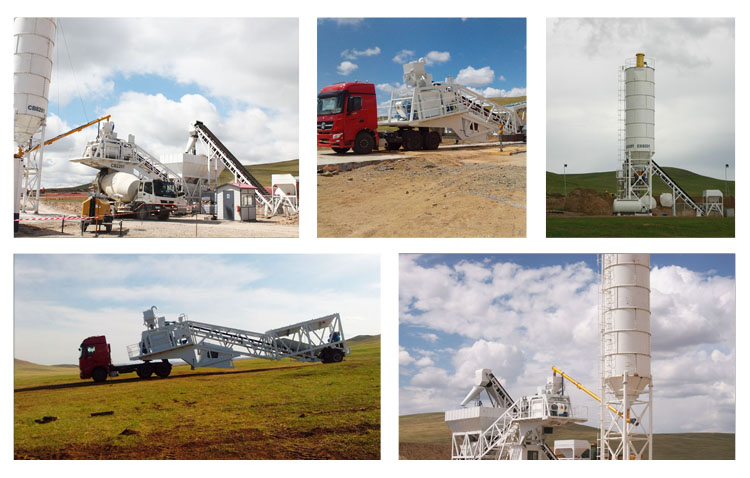

The YHZS50 Mobile Concrete Batching Plant is a highly integrated, trailer-mounted concrete production unit designed for projects that require frequent relocation and high-efficiency output. With a productivity of 50m³/h, it integrates the material storage, weighing, conveying, mixing, and automated control systems into a single chassis, making it the premier choice for modern construction.
Product Description
The YHZS50 portable plant is equipped with a powerful JS1000 twin-shaft mixer, ensuring a homogenous mix for various concrete types (plastic, dry-hard, etc.). Its compact design allows it to be moved by a truck tractor, and the "plug-and-play" feature ensures it can be fully operational within 24–48 hours of arriving at a new site.
Technical Parameters
| Model |
YHZS50 |
| Theoretical Productivity |
50 m³/h |
| Mixer Model |
JS1000 Twin-shaft Concrete Mixer |
| Max Aggregate Size |
60/80 mm |
| Discharging Height |
3.8 Meters (Customizable) |
| Aggregate Bin Capacity |
2 or 3 Bins × 8m³ |
| Weighing Accuracy |
Aggregates ±2%; Cement/Water/Additive ±1% |
| Total Power |
~85 kW |
| Control System |
Fully Automatic PLC Control with Touch Screen |
| Total Weight |
Approx. 22 Tons |
Key Advantages
- High Mobility: The entire plant is mounted on a trailer chassis, allowing for rapid relocation using a towing vehicle.
- Compact Footprint: Requires minimal foundation work compared to stationary plants, saving time and land costs.
- High-Quality Mixing: The JS1000 mixer delivers consistent, high-strength concrete for demanding structural work.
- Quick Installation: Pre-assembled and tested at the factory; modular parts allow for "instant" setup.
- Smart Operation: Features a computerized control system with manual/automatic modes and print-out reports for data management.
Minor Drawbacks (Considerations)
- Maintenance Space: Due to the compact design, maintenance space around the mixer can be tighter than in stationary models.
- Silo Limitations: Mobile plants often use horizontal silos or need external vertical silos, which require additional setup.
Applications & Uses
The YHZS50 is widely utilized in projects where the construction site moves or is located in remote areas:
- Highway and Bridge Construction: Perfect for road paving where the plant must move as the road progresses.
- Railway Projects: Supports high-speed rail sleepers and infrastructure.
- Airport Runways: Fast setup for large-scale concrete pouring.
- Port and Small Dams: Ideal for coastal or hydraulic engineering.
- Temporary Projects: For short-term building construction where a permanent plant is not cost-effective.
Packaging & Shipping
To ensure the safety of the equipment during international transit:
- Main Chassis: Securely fastened in 40HQ containers or shipped via Flat Rack.
- Electrical System: Packed in moisture-proof wooden cases to prevent damage.
- Accessories: Small parts and tools are boxed separately with clear labeling.
- Anti-Corrosion: Exposed metal surfaces are treated with anti-rust oil before sea freight.
Why Choose Our YHZS50?
As a leading manufacturer, we provide customized discharge heights and aggregate bin configurations to suit your specific site needs. Our global service team offers online support and on-site commissioning to ensure your project stays on schedule.
Contact Us Today for a Free Quote and Technical Consultation on the YHZS50 Mobile Concrete Batching Plant!
