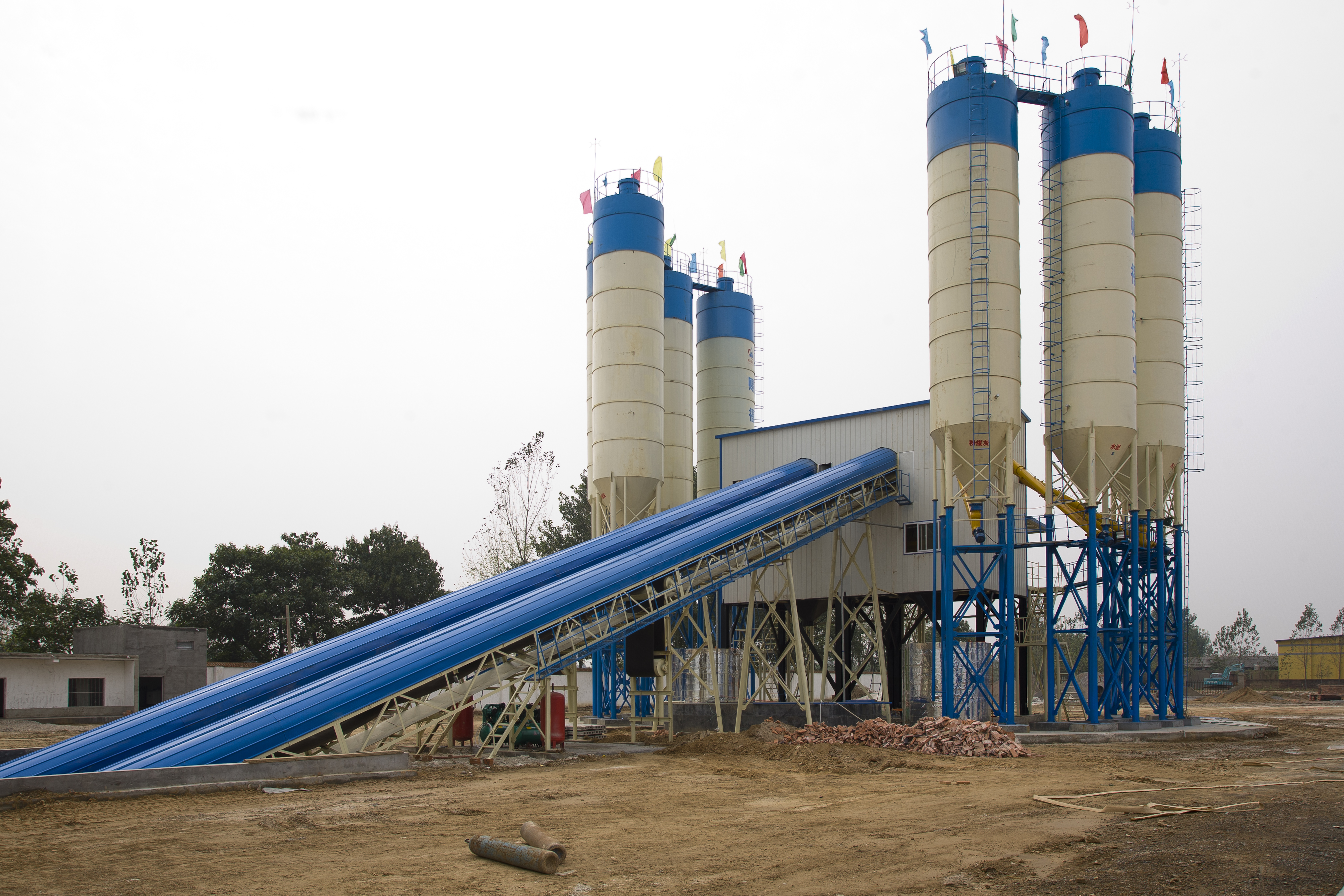

HZS120 Concrete Batching Plant

1. Product Description

The HZS120 Concrete Batching Plant is a high-performance, large-scale concrete production system with a theoretical productivity of 120 m³/h. It is equipped with the advanced JS2000 twin-shaft forced mixer, ensuring superior mixing quality for various types of concrete, including plastic and stiff-consistency concrete.

Designed for 2026 standards, this plant integrates intelligent PLC control systems, high-precision weighing sensors, and eco-friendly dust collection technology, making it the preferred choice for large-scale infrastructure and commercial concrete suppliers.

2. Technical Parameters

Item	Specification
Theoretical Productivity	120 m³/h

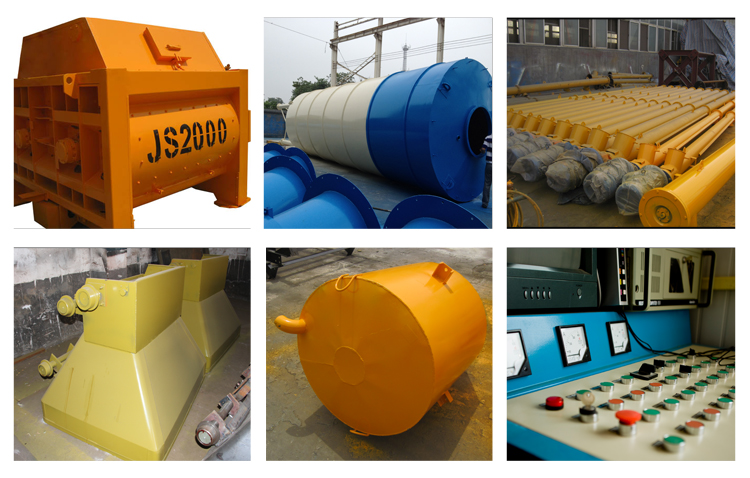

Mixer Model	JS2000 (Twin-shaft Forced Mixer)
Mixer Nominal Capacity	2000 L
Max Aggregate Size	≤ 60/80 mm
Aggregate Batching Capacity	PLD3200 (3 or 4 bins)
Discharge Height	4 meters (Customizable)
Total Power	~210 kW
Weighing Accuracy	Aggregate: ±2% / Cement, Water, Additive: ±1%
Control System	Fully Automatic PLC with Dual-Computer Sync
Cycle Time	60 seconds

3. Applications

The HZS120 plant is versatile and widely utilized in heavy-duty construction scenarios:

Commercial Concrete Supply: Large-scale commercial concrete batching plants for urban development.
Infrastructure Projects: High-speed railways, bridges, tunnels, and airport runways.
Water Conservancy: Dam construction and hydropower stations.
Precast Factories: Production of large-scale precast concrete components and blocks.

4. Advantages

High Efficiency: The JS2000 mixer shortens mixing time while maintaining high homogeneity.
Precision Accuracy: Digital weighing sensors and micro-computer control ensure strict adherence to mix designs.
Modular Design: Easy to install, dismantle, and relocate, reducing setup time on site.
Eco-Friendly: Fully enclosed conveyor belts and pulse dust filters minimize noise and air pollution.
Intelligent Operation: Equipped with a 2026-gen smart monitoring system for real-time data tracking and remote diagnostics.

5. Disadvantages

Large Footprint: Requires a significant amount of land for the main tower, aggregate bins, and cement silos.
Higher Initial Cost: Due to its large capacity and advanced automation, the initial investment is higher compared to mobile or smaller plants.
Fixed Mobility: While modular, it is not as easily moved as a "Mobile Batching Plant" and is better suited for long-term projects.

6. Packaging & Transportation

To ensure safety and cost-effectiveness during international shipping:

Main Mixer & Components: Wrapped in waterproof film and secured in standard 40HQ containers.
Steel Structures: Dismantled into modular parts and bundled for sea freight.
Control Room: Fully assembled and packed in a protective wooden crate or container.
Cement Silos: Typically shipped in sections for on-site welding or as bolted types to save shipping space.

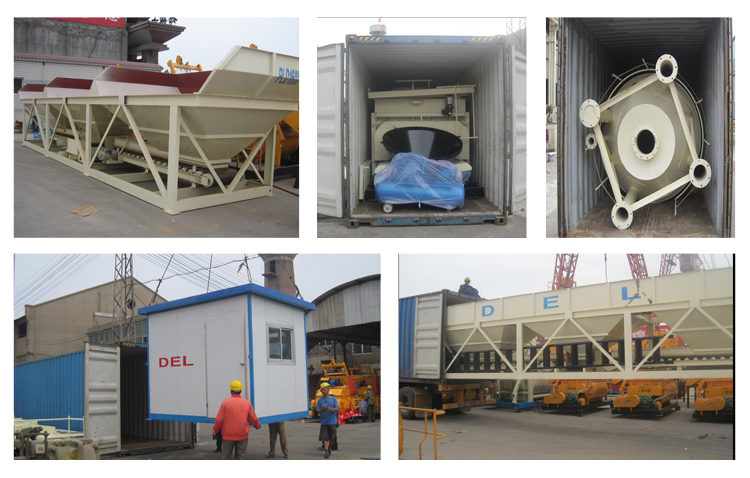

HZS120 Concrete Batching Plant Packaging

Tag： Concrete Mixing Plant Stationary Concrete Plant HZS120 Batching Plant 120m³/h Batching Plant
