1. Product Description

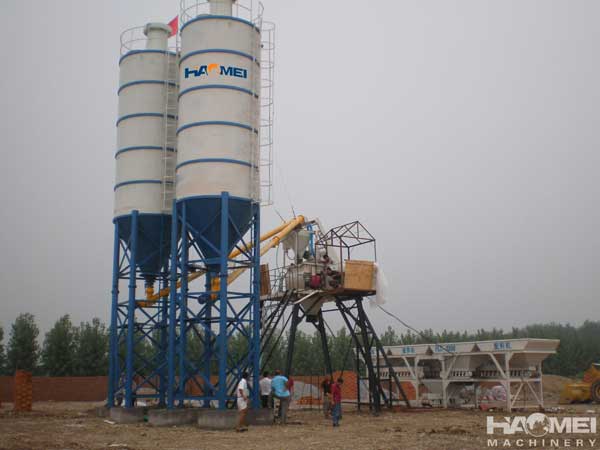

The HZS75 Concrete Batching Plant is a high-performance stationary mixing plant with a theoretical productivity of 75 m³/h. It is equipped with the robust JS1500 twin-shaft compulsory mixer, which provides a larger batch volume than the HZS50/HZS60 models.
The HZS75 utilizes a skip hoist (lifting hopper) system for aggregate feeding. This design is specifically engineered for contractors who require high output but have limited job site space. It offers a perfect balance between the high productivity of larger plants and the space-saving footprint of smaller units, ensuring rapid, uniform mixing for all types of high-quality concrete.
| Model | HZS75 | |
| Specification | Unit | Value |
| Productivity | m3/h | 75 |
| Capacity of Mixer | m3 | 1.5 |
| Mixer Power | kw | 44 |
| Discharge Height | m | 3.8(for customers choice) |
| Aggregate Bin | Quantity | 3 |
| Aggregate Bin Capacity | m3 | 2.4 |
| Max. Weighing Value of aggregate | kg | 6000 |
| Max. Weighing Value of cement | kg | 1000 |
| Max. Weighing Value of water | kg | 500 |
| Max. Weighing Value of additive | kg | 50 |
| Aggregate Measuring Accuracy | % | 2 |
| Water Measuring Accuracy | % | 1 |
| Cement Measuring Accuracy | % | 1 |
| Additive Measuring Accuracy | % | 1 |
| Cement Silo | _ | Optional |
| Cement Screw Conveyor | _ | Optional |
| Cement Silo Capicity | _ | Optional |
| Control Mode | _ | Auto/Semi control |
3. Key Applications (Uses)
The HZS75 plant is widely utilized in professional sectors including:
Medium to Large Infrastructure: Construction of bridges, dams, and small-scale hydropower stations.
Road & Highway Projects: Ideal for concrete paving and highway foundation work.
Precast Industry: Supplying high-strength concrete for large precast beams, piles, and segments.
Commercial Concrete Business: Perfect for regional concrete suppliers requiring a compact yet high-output production line.
4. Advantages (Pros)
Compact Footprint: The skip hoist design significantly reduces the land area required compared to belt-fed plants (like HZS90).
Powerful Mixing: The JS1500 mixer handles heavy loads with ease, ensuring high homogeneity in a short cycle time.
Cost-Efficient Installation: Lower foundation and civil engineering costs due to its streamlined structural design.
High Precision Monitoring: Equipped with 2026-standard high-precision load cells for rigorous quality control.
5. Disadvantages (Cons)
Feeding Speed: While efficient, the skip hoist is slightly slower than a continuous belt conveyor for back-to-back batching.
Maintenance of Hoist: The wire rope and hopper track require more frequent safety inspections than belt systems.
Limited Vertical Clearance: Not ideal for sites that require extremely high discharge heights without custom modifications.
6. Packaging & International Shipping
We provide world-class logistics protection to ensure your HZS75 arrives in factory condition:
Protective Wrapping: The JS1500 mixer and control system are sealed in moisture-proof industrial film and reinforced with anti-collision padding.
Sea-Worthy Crate: Sensitive electrical components and sensors are packed in ISPM-15 certified non-fumigation wooden boxes.
Container Optimization: A standard HZS75 setup typically utilizes 2-3 x 40HQ containers.
Corrosion Protection: All steel structures are coated with specialized anti-rust paint to withstand high-salinity maritime environments.
Lashing & Bracing: Heavy components are secured with steel wires and chocks to prevent any movement during sea transit.
