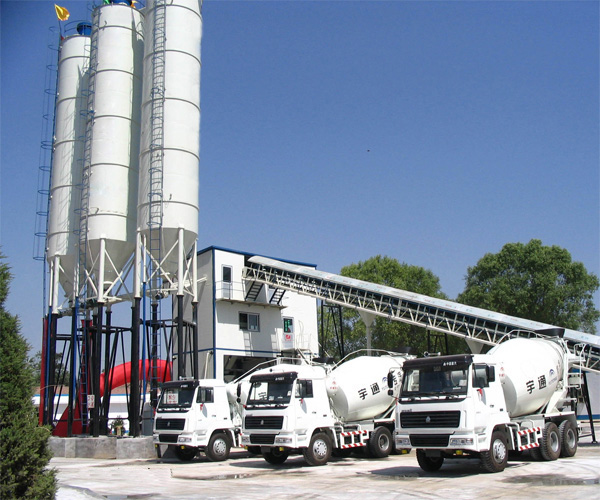

The HZS90 is a stationary, large-capacity concrete batching plant designed for commercial concrete production, delivering a theoretical output of 90 m³/h. As a flagship model in its category, it prioritizes efficiency and reliability through innovative design and advanced technology.
| Model | HZS90 | |
| Specification | Unit | Value |
| Productivity | m3/h | 90 |
| Capacity of Mixer | m3 | 1.5 |
| Mix Power | kw | 44 |
| Discharge Height | m | 3.8 |
| Aggregate Bin | Quantity | 4 |
| Aggregate Bin Capacity | m3 | 2.4 |
| Max. Weighing Value of Aggregate | kg | 1300 |
| Max. Weighing Value of Cement | kg | 1100 |
| Max. Weighing Value of Water | kg | 500 |
| Max. Weighing Value of Additive | kg | 40 |
| Aggregate Measuring Accuracy | % | ±2% |
| Water Measuring Accuracy | % | ±1% |
| Cement Measuring Accuracy | % | ±1% |
| Additive Measuring Accuracy | % | ±1% |
| Cement Silo | _ | Optional |
| Cement Screw Conveyor | _ | Optional |
| Cement Silo Capacity | _ | Optional |
| Control Mode | _ | Auto/Semi Control |
Features
1. Driving system adopts planetary gear, the gimbals transmission shaft insures circumgyrate at the same speed
2. Mixing system choose the spiral mixing system , which has high efficiency , scale board and mixing blades adopts high-rigidity and high tenacity wearable case alloy steel, to prolong the working life.
3. Aggregate lifting appliance adopts frequency control, thus providing smooth and reliable operation.
4. Lubrication system adopts advanced centralized oil lubricating system, convenient for oil supplying, this system is equipped with overvoltage warning and low oil level warning, safe and reliable
5. PC+PLC control system ensures the high reliability.
This type of machine is widely used in road and bridge engineering, airport construction, railway engineering, water conservancy projects, etc. At the same time, it can be used as medium-sized commercial concrete plants, precast concrete plants and so on.
Key Features & Advantages
Superior Feeding System
Equipped with a belt conveyor feeding system, the HZS90 ensures higher efficiency and more stable continuous operation compared to skip hoist models, minimizing downtime and maximizing productivity.
Powerful Mixing Performance
At its core is the JS1500 twin-shaft compulsory mixer, renowned for its robust mixing action and long-term durability. This ensures uniform concrete quality, even under high-intensity production demands.
Modular Design for Flexibility
The modular structure simplifies transportation, installation, and debugging, reducing setup time and site disruption. This design also enhances maintenance accessibility and future scalability.
Precision Weighing & Automation
Integrated with high-precision weighing sensors, the plant guarantees accurate material proportions for consistent concrete quality.
The fully automatic control system orchestrates every production stage, from batching to mixing, while allowing customizable formula inputs for diverse concrete grades (e.g., C20, C30, C40).
Optimized Aggregate Handling
Features a PLD2400 aggregate batcher with 4 bins, enabling efficient storage and precise dosing of sand, gravel, and other materials to meet ready-mix concrete standards.
Cost-Effective & Reliable Operation
Combines the advantages of mixing and batching technologies into a simplified, economical solution.
Prioritizes energy efficiency and cost savings without compromising output or quality.
Ensures safe, comfortable, and reliable operation with intuitive controls and durable components.
Why Choose HZS90?
Ideal for large-scale projects requiring high-volume, high-quality concrete.
Reduces operational costs through automation and modularity.
Delivers consistent performance with minimal manual intervention.
The HZS90 concrete batching plant is engineered to elevate construction efficiency, making it a strategic investment for modern builders.
